Interface

Startscreen

Press START to load the complete product or select a Specific Assembly.

Note

Doubleclick an assembly to open it!

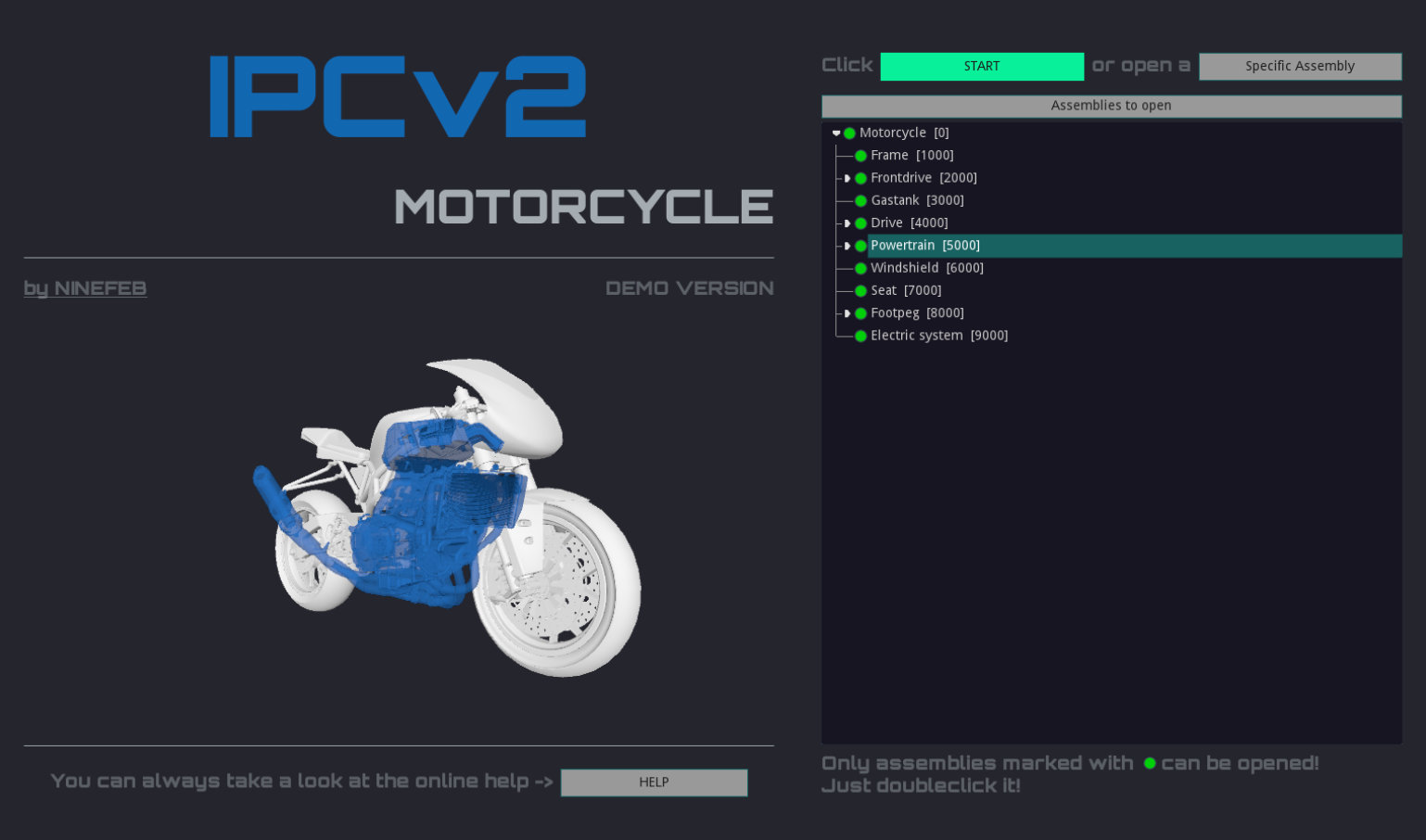

FIGURE 1: Overview: Startscreen

Interface in IPCv2

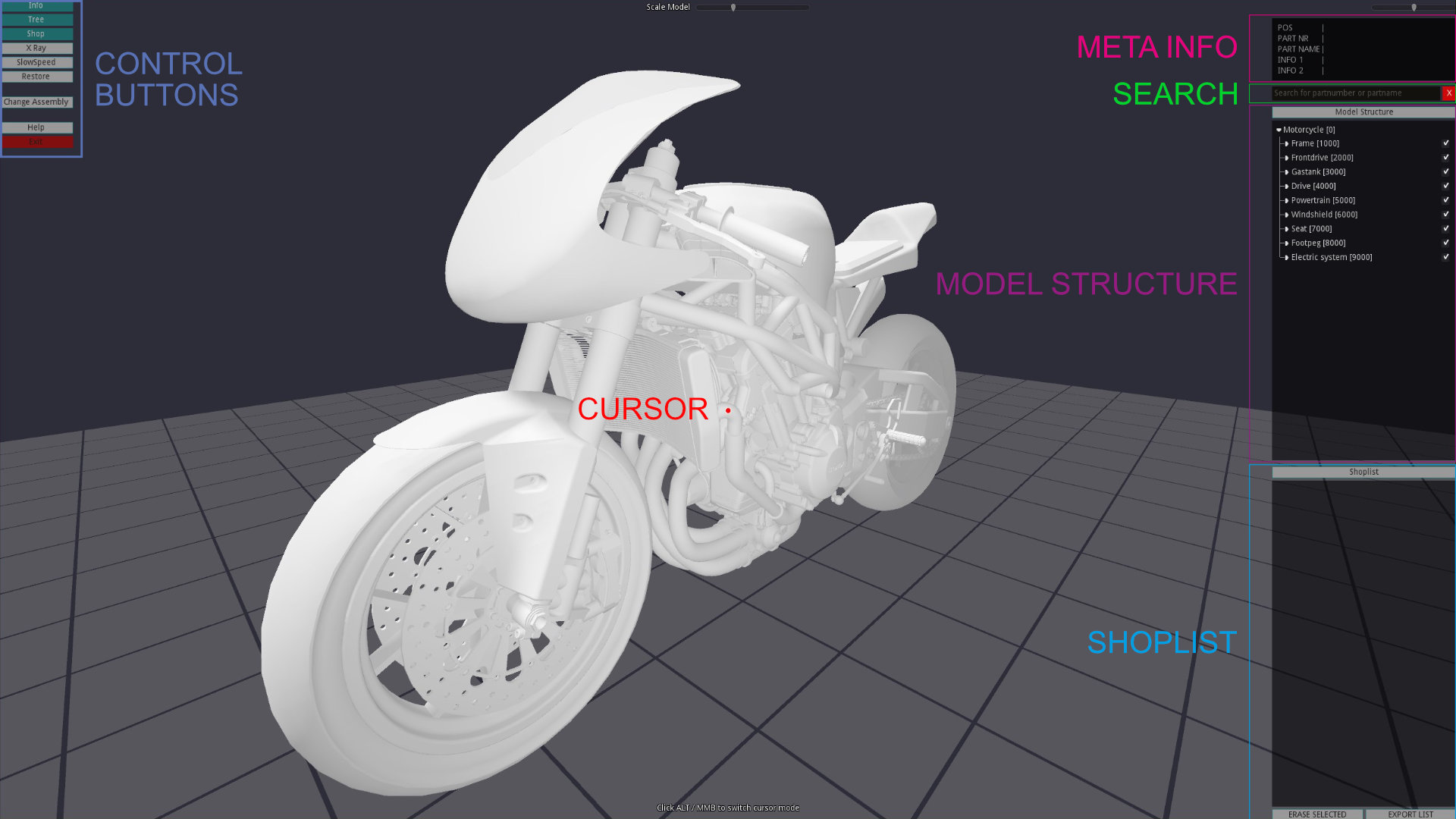

FIGURE 2: Overview: Userinterface

• Cursor
• Metainformation
• Search
• Control Buttons
• Model Structure
• Shoplist
